TCLab G - Nonlinear MPC
The TCLab is a hands-on application of machine learning and advanced temperature control with two heaters and two temperature sensors. The labs reinforce principles of model development, estimation, and advanced control methods. This is the seventh exercise and it involves nonlinear model predictive control with an energy balance model that is augmented with empirical elements. The predictions were previously aligned to the measured values through an estimator. This model predictive controller uses those parameters and a nonlinear MIMO (Multiple Input, Multiple Output) model of the TCLab input to output response to control temperatures to a set point.
Lab Problem Statement
Data and Solutions
import tclab
import numpy as np
import time
import matplotlib.pyplot as plt
from gekko import GEKKO
# Connect to Arduino
a = tclab.TCLab()
# Get Version
print(a.version)
# Turn LED on
print('LED On')
a.LED(100)
# Run time in minutes
run_time = 10.0
# Number of cycles with 3 second intervals
loops = int(20.0*run_time)
tm = np.zeros(loops)
# Temperature (K)
T1 = np.ones(loops) * a.T1 # temperature (degC)
Tsp1 = np.ones(loops) * 35.0 # set point (degC)
T2 = np.ones(loops) * a.T2 # temperature (degC)
Tsp2 = np.ones(loops) * 23.0 # set point (degC)
# Set point changes
Tsp1[3:] = 40.0
Tsp2[40:] = 30.0
Tsp1[80:] = 32.0
Tsp2[120:] = 35.0
Tsp1[160:] = 45.0
# heater values
Q1s = np.ones(loops) * 0.0
Q2s = np.ones(loops) * 0.0
#########################################################
# Initialize Model
#########################################################
m = GEKKO(name='tclab-mpc',remote=False)
# 60 second time horizon, steps of 3 sec
m.time = np.linspace(0,60,21)
# Parameters
U = m.FV(value=10,name='u')
tau = m.FV(value=5,name='tau')
alpha1 = m.FV(value=0.01) # W / % heater
alpha2 = m.FV(value=0.0075) # W / % heater
Kp = m.Param(value=0.5)
tau = m.Param(value=50.0)
zeta = m.Param(value=1.5)
# Manipulated variables
Q1 = m.MV(value=0)
Q1.STATUS = 1 # use to control temperature
Q1.FSTATUS = 0 # no feedback measurement
Q1.LOWER = 0.0
Q1.UPPER = 100.0
Q1.DMAX = 40.0
Q1.COST = 0.0
Q1.DCOST = 0.0
Q2 = m.MV(value=0)
Q2.STATUS = 1 # use to control temperature
Q2.FSTATUS = 0 # no feedback measurement
Q2.LOWER = 0.0
Q2.UPPER = 100.0
Q2.DMAX = 40.0
Q2.COST = 0.0
Q2.DCOST = 0.0
# Controlled variable
TC1 = m.CV(value=T1[0])
TC1.STATUS = 1 # minimize error with setpoint range
TC1.FSTATUS = 1 # receive measurement
TC1.TR_INIT = 1 # reference trajectory
TC1.TAU = 10 # time constant for response
# Controlled variable
TC2 = m.CV(value=T2[0])
TC2.STATUS = 1 # minimize error with setpoint range
TC2.FSTATUS = 1 # receive measurement
TC2.TR_INIT = 1 # reference trajectory
TC2.TAU = 10 # time constant for response
# State variables
TH1 = m.SV(value=T1[0])
TH2 = m.SV(value=T2[0])
Ta = m.Param(value=23.0+273.15) # K
mass = m.Param(value=4.0/1000.0) # kg
Cp = m.Param(value=0.5*1000.0) # J/kg-K
A = m.Param(value=10.0/100.0**2) # Area not between heaters in m^2
As = m.Param(value=2.0/100.0**2) # Area between heaters in m^2
eps = m.Param(value=0.9) # Emissivity
sigma = m.Const(5.67e-8) # Stefan-Boltzmann
# Heater temperatures
T1i = m.Intermediate(TH1+273.15)
T2i = m.Intermediate(TH2+273.15)
# Heat transfer between two heaters
Q_C12 = m.Intermediate(U*As*(T2i-T1i)) # Convective
Q_R12 = m.Intermediate(eps*sigma*As*(T2i**4-T1i**4)) # Radiative
# Semi-fundamental correlations (energy balances)
m.Equation(TH1.dt() == (1.0/(mass*Cp))*(U*A*(Ta-T1i) \
+ eps * sigma * A * (Ta**4 - T1i**4) \
+ Q_C12 + Q_R12 \
+ alpha1*Q1))
m.Equation(TH2.dt() == (1.0/(mass*Cp))*(U*A*(Ta-T2i) \
+ eps * sigma * A * (Ta**4 - T2i**4) \
- Q_C12 - Q_R12 \
+ alpha2*Q2))
# Empirical correlations (lag equations to emulate conduction)
m.Equation(tau * TC1.dt() == -TC1 + TH1)
m.Equation(tau * TC2.dt() == -TC2 + TH2)
# Global Options
m.options.IMODE = 6 # MPC
m.options.CV_TYPE = 1 # Objective type
m.options.NODES = 3 # Collocation nodes
m.options.SOLVER = 3 # 1=APOPT, 3=IPOPT
##################################################################
# Create plot
plt.figure()
plt.ion()
plt.show()
# Main Loop
start_time = time.time()
prev_time = start_time
try:
for i in range(1,loops):
# Sleep time
sleep_max = 3.0
sleep = sleep_max - (time.time() - prev_time)
if sleep>=0.01:
time.sleep(sleep)
else:
time.sleep(0.01)
# Record time and change in time
t = time.time()
dt = t - prev_time
prev_time = t
tm[i] = t - start_time
# Read temperatures in Kelvin
T1[i] = a.T1
T2[i] = a.T2
###############################
### MPC CONTROLLER ###
###############################
TC1.MEAS = T1[i]
TC2.MEAS = T2[i]
# input setpoint with deadband +/- DT
DT = 0.1
TC1.SPHI = Tsp1[i] + DT
TC1.SPLO = Tsp1[i] - DT
TC2.SPHI = Tsp2[i] + DT
TC2.SPLO = Tsp2[i] - DT
# solve MPC
m.solve(disp=False)
# test for successful solution
if (m.options.APPSTATUS==1):
# retrieve the first Q value
Q1s[i] = Q1.NEWVAL
Q2s[i] = Q2.NEWVAL
else:
# not successful, set heater to zero
Q1s[i] = 0
Q2s[i] = 0
# Write output (0-100)
a.Q1(Q1s[i])
a.Q2(Q2s[i])

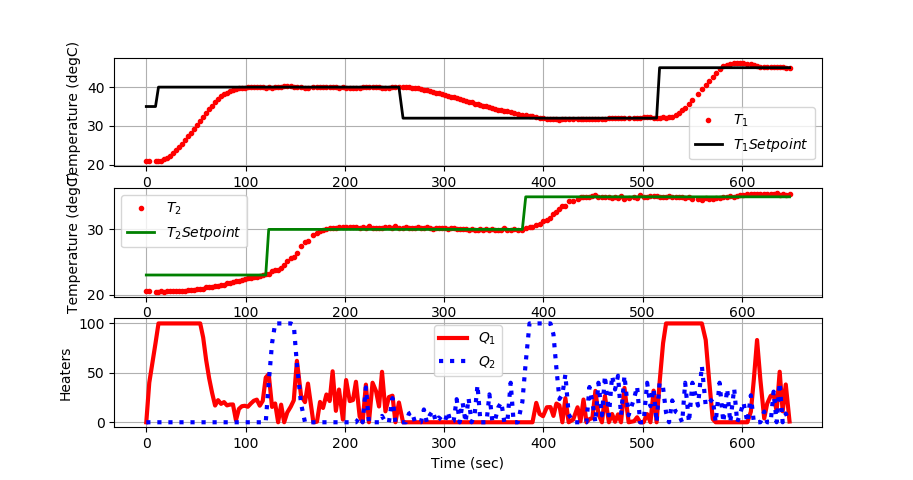

# Plot
plt.clf()
ax=plt.subplot(3,1,1)
ax.grid()
plt.plot(tm[0:i],T1[0:i],'ro',MarkerSize=3,label=r'$T_1$')
plt.plot(tm[0:i],Tsp1[0:i],'k-',lw=2,label=r'$T_1 SP$')
plt.ylabel('Temperature (degC)')
plt.legend(loc='best')
ax=plt.subplot(3,1,2)
ax.grid()
plt.plot(tm[0:i],T2[0:i],'ro',MarkerSize=3,label=r'$T_2$')
plt.plot(tm[0:i],Tsp2[0:i],'g-',lw=2,label=r'$T_2 SP$')
plt.ylabel('Temperature (degC)')
plt.legend(loc='best')
ax=plt.subplot(3,1,3)
ax.grid()
plt.plot(tm[0:i],Q1s[0:i],'r-',lw=3,label=r'$Q_1$')
plt.plot(tm[0:i],Q2s[0:i],'b:',lw=3,label=r'$Q_2$')
plt.ylabel('Heaters')
plt.xlabel('Time (sec)')
plt.legend(loc='best')
plt.draw()
plt.pause(0.05)
# Turn off heaters
a.Q1(0)
a.Q2(0)
print('Shutting down')
# Allow user to end loop with Ctrl-C
except KeyboardInterrupt:
# Disconnect from Arduino
a.Q1(0)
a.Q2(0)
print('Shutting down')
a.close()
# Make sure serial connection still closes when there's an error
except:
# Disconnect from Arduino
a.Q1(0)
a.Q2(0)
print('Error: Shutting down')
a.close()
raise
import numpy as np
import time
import matplotlib.pyplot as plt
from gekko import GEKKO
# Connect to Arduino
a = tclab.TCLab()
# Get Version
print(a.version)
# Turn LED on
print('LED On')
a.LED(100)
# Run time in minutes
run_time = 10.0
# Number of cycles with 3 second intervals
loops = int(20.0*run_time)
tm = np.zeros(loops)
# Temperature (K)
T1 = np.ones(loops) * a.T1 # temperature (degC)
Tsp1 = np.ones(loops) * 35.0 # set point (degC)
T2 = np.ones(loops) * a.T2 # temperature (degC)
Tsp2 = np.ones(loops) * 23.0 # set point (degC)
# Set point changes
Tsp1[3:] = 40.0
Tsp2[40:] = 30.0
Tsp1[80:] = 32.0
Tsp2[120:] = 35.0
Tsp1[160:] = 45.0
# heater values
Q1s = np.ones(loops) * 0.0
Q2s = np.ones(loops) * 0.0
#########################################################
# Initialize Model
#########################################################
m = GEKKO(name='tclab-mpc',remote=False)
# 60 second time horizon, steps of 3 sec
m.time = np.linspace(0,60,21)
# Parameters
U = m.FV(value=10,name='u')
tau = m.FV(value=5,name='tau')
alpha1 = m.FV(value=0.01) # W / % heater
alpha2 = m.FV(value=0.0075) # W / % heater
Kp = m.Param(value=0.5)
tau = m.Param(value=50.0)
zeta = m.Param(value=1.5)
# Manipulated variables
Q1 = m.MV(value=0)
Q1.STATUS = 1 # use to control temperature
Q1.FSTATUS = 0 # no feedback measurement
Q1.LOWER = 0.0
Q1.UPPER = 100.0
Q1.DMAX = 40.0
Q1.COST = 0.0
Q1.DCOST = 0.0
Q2 = m.MV(value=0)
Q2.STATUS = 1 # use to control temperature
Q2.FSTATUS = 0 # no feedback measurement
Q2.LOWER = 0.0
Q2.UPPER = 100.0
Q2.DMAX = 40.0
Q2.COST = 0.0
Q2.DCOST = 0.0
# Controlled variable
TC1 = m.CV(value=T1[0])
TC1.STATUS = 1 # minimize error with setpoint range
TC1.FSTATUS = 1 # receive measurement
TC1.TR_INIT = 1 # reference trajectory
TC1.TAU = 10 # time constant for response
# Controlled variable
TC2 = m.CV(value=T2[0])
TC2.STATUS = 1 # minimize error with setpoint range
TC2.FSTATUS = 1 # receive measurement
TC2.TR_INIT = 1 # reference trajectory
TC2.TAU = 10 # time constant for response
# State variables
TH1 = m.SV(value=T1[0])
TH2 = m.SV(value=T2[0])
Ta = m.Param(value=23.0+273.15) # K
mass = m.Param(value=4.0/1000.0) # kg
Cp = m.Param(value=0.5*1000.0) # J/kg-K
A = m.Param(value=10.0/100.0**2) # Area not between heaters in m^2
As = m.Param(value=2.0/100.0**2) # Area between heaters in m^2
eps = m.Param(value=0.9) # Emissivity
sigma = m.Const(5.67e-8) # Stefan-Boltzmann
# Heater temperatures
T1i = m.Intermediate(TH1+273.15)
T2i = m.Intermediate(TH2+273.15)
# Heat transfer between two heaters
Q_C12 = m.Intermediate(U*As*(T2i-T1i)) # Convective
Q_R12 = m.Intermediate(eps*sigma*As*(T2i**4-T1i**4)) # Radiative
# Semi-fundamental correlations (energy balances)
m.Equation(TH1.dt() == (1.0/(mass*Cp))*(U*A*(Ta-T1i) \
+ eps * sigma * A * (Ta**4 - T1i**4) \
+ Q_C12 + Q_R12 \
+ alpha1*Q1))
m.Equation(TH2.dt() == (1.0/(mass*Cp))*(U*A*(Ta-T2i) \
+ eps * sigma * A * (Ta**4 - T2i**4) \
- Q_C12 - Q_R12 \
+ alpha2*Q2))
# Empirical correlations (lag equations to emulate conduction)
m.Equation(tau * TC1.dt() == -TC1 + TH1)
m.Equation(tau * TC2.dt() == -TC2 + TH2)
# Global Options
m.options.IMODE = 6 # MPC
m.options.CV_TYPE = 1 # Objective type
m.options.NODES = 3 # Collocation nodes
m.options.SOLVER = 3 # 1=APOPT, 3=IPOPT
##################################################################
# Create plot
plt.figure()
plt.ion()
plt.show()
# Main Loop
start_time = time.time()
prev_time = start_time
try:
for i in range(1,loops):
# Sleep time
sleep_max = 3.0
sleep = sleep_max - (time.time() - prev_time)
if sleep>=0.01:
time.sleep(sleep)
else:
time.sleep(0.01)
# Record time and change in time
t = time.time()
dt = t - prev_time
prev_time = t
tm[i] = t - start_time
# Read temperatures in Kelvin
T1[i] = a.T1
T2[i] = a.T2
###############################
### MPC CONTROLLER ###
###############################
TC1.MEAS = T1[i]
TC2.MEAS = T2[i]
# input setpoint with deadband +/- DT
DT = 0.1
TC1.SPHI = Tsp1[i] + DT
TC1.SPLO = Tsp1[i] - DT
TC2.SPHI = Tsp2[i] + DT
TC2.SPLO = Tsp2[i] - DT
# solve MPC
m.solve(disp=False)
# test for successful solution
if (m.options.APPSTATUS==1):
# retrieve the first Q value
Q1s[i] = Q1.NEWVAL
Q2s[i] = Q2.NEWVAL
else:
# not successful, set heater to zero
Q1s[i] = 0
Q2s[i] = 0
# Write output (0-100)
a.Q1(Q1s[i])
a.Q2(Q2s[i])
# Plot
plt.clf()
ax=plt.subplot(3,1,1)
ax.grid()
plt.plot(tm[0:i],T1[0:i],'ro',MarkerSize=3,label=r'$T_1$')
plt.plot(tm[0:i],Tsp1[0:i],'k-',lw=2,label=r'$T_1 SP$')
plt.ylabel('Temperature (degC)')
plt.legend(loc='best')
ax=plt.subplot(3,1,2)
ax.grid()
plt.plot(tm[0:i],T2[0:i],'ro',MarkerSize=3,label=r'$T_2$')
plt.plot(tm[0:i],Tsp2[0:i],'g-',lw=2,label=r'$T_2 SP$')
plt.ylabel('Temperature (degC)')
plt.legend(loc='best')
ax=plt.subplot(3,1,3)
ax.grid()
plt.plot(tm[0:i],Q1s[0:i],'r-',lw=3,label=r'$Q_1$')
plt.plot(tm[0:i],Q2s[0:i],'b:',lw=3,label=r'$Q_2$')
plt.ylabel('Heaters')
plt.xlabel('Time (sec)')
plt.legend(loc='best')
plt.draw()
plt.pause(0.05)
# Turn off heaters
a.Q1(0)
a.Q2(0)
print('Shutting down')
# Allow user to end loop with Ctrl-C
except KeyboardInterrupt:
# Disconnect from Arduino
a.Q1(0)
a.Q2(0)
print('Shutting down')
a.close()
# Make sure serial connection still closes when there's an error
except:
# Disconnect from Arduino
a.Q1(0)
a.Q2(0)
print('Error: Shutting down')
a.close()
raise
Training data is generated from the script in TCLab B or use one of the data files below.
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from sklearn.preprocessing import MinMaxScaler
from gekko import GEKKO
import tclab
import time
# -------------------------------------
# connect to Arduino
# -------------------------------------
a = tclab.TCLab()
# -------------------------------------
# import data
# -------------------------------------
url = 'https://apmonitor.com/do/uploads/Main/tclab_ss_data3.txt'
data = pd.read_csv(url)
# -------------------------------------
# scale data
# -------------------------------------
s = MinMaxScaler(feature_range=(0,1))
sc_train = s.fit_transform(data)
# partition into inputs and outputs
xs = sc_train[:,0:2] # 2 heaters
ys = sc_train[:,2:4] # 2 temperatures
# -------------------------------------
# build neural network
# -------------------------------------
nin = 2 # inputs
n1 = 2 # hidden layer 1 (linear)
n2 = 2 # hidden layer 2 (nonlinear)
n3 = 2 # hidden layer 3 (linear)
nout = 2 # outputs
# Initialize gekko models
train = GEKKO()
mpc = GEKKO(remote=False)
model = [train,mpc]
for m in model:
# use APOPT solver
m.options.SOLVER = 1
# input(s)
if m==train:
# parameter for training
m.inpt = [m.Param() for i in range(nin)]
else:
# variable for MPC
m.inpt = [m.Var() for i in range(nin)]
# layer 1 (linear)
m.w1 = m.Array(m.FV, (nout,nin,n1))
m.l1 = [[m.Intermediate(sum([m.w1[k,j,i]*m.inpt[j] \
for j in range(nin)])) for i in range(n1)] \
for k in range(nout)]
# layer 2 (tanh)
m.w2 = m.Array(m.FV, (nout,n1,n2))
m.l2 = [[m.Intermediate(sum([m.tanh(m.w2[k,j,i]*m.l1[k][j]) \
for j in range(n1)])) for i in range(n2)] \
for k in range(nout)]
# layer 3 (linear)
m.w3 = m.Array(m.FV, (nout,n2,n3))
m.l3 = [[m.Intermediate(sum([m.w3[k,j,i]*m.l2[k][j] \
for j in range(n2)])) for i in range(n3)] \
for k in range(nout)]
# outputs
m.outpt = [m.CV() for i in range(nout)]
m.Equations([m.outpt[k]==sum([m.l3[k][i] for i in range(n3)]) \
for k in range(nout)])
# flatten matrices
m.w1 = m.w1.flatten()
m.w2 = m.w2.flatten()
m.w3 = m.w3.flatten()
# -------------------------------------
# fit parameter weights
# -------------------------------------
m = train
for i in range(nin):
m.inpt[i].value=xs[:,i]
for i in range(nout):
m.outpt[i].value = ys[:,i]
m.outpt[i].FSTATUS = 1
for i in range(len(m.w1)):
m.w1[i].FSTATUS=1
m.w1[i].STATUS=1
m.w1[i].MEAS=1.0
for i in range(len(m.w2)):
m.w2[i].STATUS=1
m.w2[i].FSTATUS=1
m.w2[i].MEAS=0.5
for i in range(len(m.w3)):
m.w3[i].FSTATUS=1
m.w3[i].STATUS=1
m.w3[i].MEAS=1.0
m.options.IMODE = 2
m.options.EV_TYPE = 2
# solve for weights to minimize loss (objective)
m.solve(disp=True)
# -------------------------------------
# Create Model Predictive Controller
# -------------------------------------
m = mpc
# 60 second time horizon, steps of 3 sec
m.time = np.linspace(0,60,21)
# load neural network parameters
for i in range(len(m.w1)):
m.w1[i].MEAS=train.w1[i].NEWVAL
m.w1[i].FSTATUS = 1
for i in range(len(m.w2)):
m.w2[i].MEAS=train.w2[i].NEWVAL
m.w2[i].FSTATUS = 1
for i in range(len(m.w3)):
m.w3[i].MEAS=train.w3[i].NEWVAL
m.w3[i].FSTATUS = 1
# MVs and CVs
Q1 = m.MV(value=0)
Q2 = m.MV(value=0)
TC1 = m.CV(value=a.T1)
TC2 = m.CV(value=a.T2)
# scaled inputs to neural network
m.Equation(m.inpt[0] == Q1 * s.scale_[0] + s.min_[0])
m.Equation(m.inpt[1] == Q2 * s.scale_[1] + s.min_[1])
# define Temperature output
Q0 = 0 # initial heater
T0 = 23 # ambient temperature
# scaled steady state ouput
T1_ss = m.Var(value=T0)
T2_ss = m.Var(value=T0)
m.Equation(T1_ss == (m.outpt[0]-s.min_[2])/s.scale_[2])
m.Equation(T2_ss == (m.outpt[1]-s.min_[3])/s.scale_[3])
# time constants
tauA = m.Param(value=80)
tauB = m.Param(value=20)
TH1 = m.Var(a.T1)
TH2 = m.Var(a.T2)
# additional model equation for dynamics
m.Equation(tauA*TH1.dt()==-TH1+T1_ss)
m.Equation(tauA*TH2.dt()==-TH2+T2_ss)
m.Equation(tauB*TC1.dt()==-TC1+TH1)
m.Equation(tauB*TC2.dt()==-TC2+TH2)
# Manipulated variable tuning
Q1.STATUS = 1 # use to control temperature
Q1.FSTATUS = 0 # no feedback measurement
Q1.LOWER = 0.0
Q1.UPPER = 100.0
Q1.DMAX = 40.0
Q1.COST = 0.0
Q1.DCOST = 0.0
Q2.STATUS = 1 # use to control temperature
Q2.FSTATUS = 0 # no feedback measurement
Q2.LOWER = 0.0
Q2.UPPER = 100.0
Q2.DMAX = 40.0
Q2.COST = 0.0
Q2.DCOST = 0.0
# Controlled variable tuning
TC1.STATUS = 1 # minimize error with setpoint range
TC1.FSTATUS = 1 # receive measurement
TC1.TR_INIT = 1 # reference trajectory
TC1.TAU = 10 # time constant for response
TC2.STATUS = 1 # minimize error with setpoint range
TC2.FSTATUS = 1 # receive measurement
TC2.TR_INIT = 1 # reference trajectory
TC2.TAU = 10 # time constant for response
# Global Options
m.options.IMODE = 6 # MPC
m.options.CV_TYPE = 1 # Objective type
m.options.NODES = 3 # Collocation nodes
m.options.SOLVER = 3 # 1=APOPT, 3=IPOPT
# -------------------------------------
# Initialize model and data storage
# -------------------------------------
# Get Version
print(a.version)
# Turn LED on
print('LED On')
a.LED(100)
# Run time in minutes
run_time = 10.0
# Number of cycles with 3 second intervals
loops = int(20.0*run_time)
tm = np.zeros(loops)
# Temperature (K)
T1 = np.ones(loops) * a.T1 # temperature (degC)
T1sp = np.ones(loops) * 35.0 # set point (degC)
T2 = np.ones(loops) * a.T2 # temperature (degC)
T2sp = np.ones(loops) * 23.0 # set point (degC)
# Set point changes
T1sp[3:] = 40.0
T2sp[40:] = 30.0
T1sp[80:] = 32.0
T2sp[120:] = 35.0
T1sp[160:] = 45.0
# heater values
Q1s = np.ones(loops) * 0.0
Q2s = np.ones(loops) * 0.0
# Create plot
plt.figure()
plt.ion()
plt.show()
# Main Loop
start_time = time.time()
prev_time = start_time
try:
for i in range(1,loops):
# Sleep time
sleep_max = 3.0
sleep = sleep_max - (time.time() - prev_time)
if sleep>=0.01:
time.sleep(sleep)
else:
time.sleep(0.01)
# Record time and change in time
t = time.time()
dt = t - prev_time
prev_time = t
tm[i] = t - start_time
# Read temperatures in Kelvin
T1[i] = a.T1
T2[i] = a.T2
###############################
### MPC CONTROLLER ###
###############################
TC1.MEAS = T1[i]
TC2.MEAS = T2[i]
# input setpoint with deadband +/- DT
DT = 0.1
TC1.SPHI = T1sp[i] + DT
TC1.SPLO = T1sp[i] - DT
TC2.SPHI = T2sp[i] + DT
TC2.SPLO = T2sp[i] - DT
# solve MPC
m.solve(disp=False)
# test for successful solution
if (m.options.APPSTATUS==1):
# retrieve the first Q value
Q1s[i] = Q1.NEWVAL
Q2s[i] = Q2.NEWVAL
else:
# not successful, set heater to zero
Q1s[i] = 0
Q2s[i] = 0
# Write output (0-100)
a.Q1(Q1s[i])
a.Q2(Q2s[i])
# Plot
plt.clf()
ax=plt.subplot(3,1,1)
ax.grid()
plt.plot(tm[0:i],T1[0:i],'ro',MarkerSize=3,label=r'$T_1$')
plt.plot(tm[0:i],T1sp[0:i],'k-',lw=2,label=r'$T_1 SP$')
plt.ylabel('Temperature (degC)')
plt.legend(loc='best')
ax=plt.subplot(3,1,2)
ax.grid()
plt.plot(tm[0:i],T2[0:i],'ro',MarkerSize=3,label=r'$T_2$')
plt.plot(tm[0:i],T2sp[0:i],'g-',lw=2,label=r'$T_2 SP$')
plt.ylabel('Temperature (degC)')
plt.legend(loc='best')
ax=plt.subplot(3,1,3)
ax.grid()
plt.plot(tm[0:i],Q1s[0:i],'r-',lw=3,label=r'$Q_1$')
plt.plot(tm[0:i],Q2s[0:i],'b:',lw=3,label=r'$Q_2$')
plt.ylabel('Heaters')
plt.xlabel('Time (sec)')
plt.legend(loc='best')
plt.draw()
plt.pause(0.05)
# Turn off heaters
a.Q1(0)
a.Q2(0)
print('Shutting down')
# Allow user to end loop with Ctrl-C
except KeyboardInterrupt:
# Disconnect from Arduino
a.Q1(0)
a.Q2(0)
print('Shutting down')
a.close()
# Make sure serial connection still closes when there's an error
except:
# Disconnect from Arduino
a.Q1(0)
a.Q2(0)
print('Error: Shutting down')
a.close()
raise
import pandas as pd
import matplotlib.pyplot as plt
from sklearn.preprocessing import MinMaxScaler
from gekko import GEKKO
import tclab
import time
# -------------------------------------
# connect to Arduino
# -------------------------------------
a = tclab.TCLab()
# -------------------------------------
# import data
# -------------------------------------
url = 'https://apmonitor.com/do/uploads/Main/tclab_ss_data3.txt'
data = pd.read_csv(url)
# -------------------------------------
# scale data
# -------------------------------------
s = MinMaxScaler(feature_range=(0,1))
sc_train = s.fit_transform(data)
# partition into inputs and outputs
xs = sc_train[:,0:2] # 2 heaters
ys = sc_train[:,2:4] # 2 temperatures
# -------------------------------------
# build neural network
# -------------------------------------
nin = 2 # inputs
n1 = 2 # hidden layer 1 (linear)
n2 = 2 # hidden layer 2 (nonlinear)
n3 = 2 # hidden layer 3 (linear)
nout = 2 # outputs
# Initialize gekko models
train = GEKKO()
mpc = GEKKO(remote=False)
model = [train,mpc]
for m in model:
# use APOPT solver
m.options.SOLVER = 1
# input(s)
if m==train:
# parameter for training
m.inpt = [m.Param() for i in range(nin)]
else:
# variable for MPC
m.inpt = [m.Var() for i in range(nin)]
# layer 1 (linear)
m.w1 = m.Array(m.FV, (nout,nin,n1))
m.l1 = [[m.Intermediate(sum([m.w1[k,j,i]*m.inpt[j] \
for j in range(nin)])) for i in range(n1)] \
for k in range(nout)]
# layer 2 (tanh)
m.w2 = m.Array(m.FV, (nout,n1,n2))
m.l2 = [[m.Intermediate(sum([m.tanh(m.w2[k,j,i]*m.l1[k][j]) \
for j in range(n1)])) for i in range(n2)] \
for k in range(nout)]
# layer 3 (linear)
m.w3 = m.Array(m.FV, (nout,n2,n3))
m.l3 = [[m.Intermediate(sum([m.w3[k,j,i]*m.l2[k][j] \
for j in range(n2)])) for i in range(n3)] \
for k in range(nout)]
# outputs
m.outpt = [m.CV() for i in range(nout)]
m.Equations([m.outpt[k]==sum([m.l3[k][i] for i in range(n3)]) \
for k in range(nout)])
# flatten matrices
m.w1 = m.w1.flatten()
m.w2 = m.w2.flatten()
m.w3 = m.w3.flatten()
# -------------------------------------
# fit parameter weights
# -------------------------------------
m = train
for i in range(nin):
m.inpt[i].value=xs[:,i]
for i in range(nout):
m.outpt[i].value = ys[:,i]
m.outpt[i].FSTATUS = 1
for i in range(len(m.w1)):
m.w1[i].FSTATUS=1
m.w1[i].STATUS=1
m.w1[i].MEAS=1.0
for i in range(len(m.w2)):
m.w2[i].STATUS=1
m.w2[i].FSTATUS=1
m.w2[i].MEAS=0.5
for i in range(len(m.w3)):
m.w3[i].FSTATUS=1
m.w3[i].STATUS=1
m.w3[i].MEAS=1.0
m.options.IMODE = 2
m.options.EV_TYPE = 2
# solve for weights to minimize loss (objective)
m.solve(disp=True)
# -------------------------------------
# Create Model Predictive Controller
# -------------------------------------
m = mpc
# 60 second time horizon, steps of 3 sec
m.time = np.linspace(0,60,21)
# load neural network parameters
for i in range(len(m.w1)):
m.w1[i].MEAS=train.w1[i].NEWVAL
m.w1[i].FSTATUS = 1
for i in range(len(m.w2)):
m.w2[i].MEAS=train.w2[i].NEWVAL
m.w2[i].FSTATUS = 1
for i in range(len(m.w3)):
m.w3[i].MEAS=train.w3[i].NEWVAL
m.w3[i].FSTATUS = 1
# MVs and CVs
Q1 = m.MV(value=0)
Q2 = m.MV(value=0)
TC1 = m.CV(value=a.T1)
TC2 = m.CV(value=a.T2)
# scaled inputs to neural network
m.Equation(m.inpt[0] == Q1 * s.scale_[0] + s.min_[0])
m.Equation(m.inpt[1] == Q2 * s.scale_[1] + s.min_[1])
# define Temperature output
Q0 = 0 # initial heater
T0 = 23 # ambient temperature
# scaled steady state ouput
T1_ss = m.Var(value=T0)
T2_ss = m.Var(value=T0)
m.Equation(T1_ss == (m.outpt[0]-s.min_[2])/s.scale_[2])
m.Equation(T2_ss == (m.outpt[1]-s.min_[3])/s.scale_[3])
# time constants
tauA = m.Param(value=80)
tauB = m.Param(value=20)
TH1 = m.Var(a.T1)
TH2 = m.Var(a.T2)
# additional model equation for dynamics
m.Equation(tauA*TH1.dt()==-TH1+T1_ss)
m.Equation(tauA*TH2.dt()==-TH2+T2_ss)
m.Equation(tauB*TC1.dt()==-TC1+TH1)
m.Equation(tauB*TC2.dt()==-TC2+TH2)
# Manipulated variable tuning
Q1.STATUS = 1 # use to control temperature
Q1.FSTATUS = 0 # no feedback measurement
Q1.LOWER = 0.0
Q1.UPPER = 100.0
Q1.DMAX = 40.0
Q1.COST = 0.0
Q1.DCOST = 0.0
Q2.STATUS = 1 # use to control temperature
Q2.FSTATUS = 0 # no feedback measurement
Q2.LOWER = 0.0
Q2.UPPER = 100.0
Q2.DMAX = 40.0
Q2.COST = 0.0
Q2.DCOST = 0.0
# Controlled variable tuning
TC1.STATUS = 1 # minimize error with setpoint range
TC1.FSTATUS = 1 # receive measurement
TC1.TR_INIT = 1 # reference trajectory
TC1.TAU = 10 # time constant for response
TC2.STATUS = 1 # minimize error with setpoint range
TC2.FSTATUS = 1 # receive measurement
TC2.TR_INIT = 1 # reference trajectory
TC2.TAU = 10 # time constant for response
# Global Options
m.options.IMODE = 6 # MPC
m.options.CV_TYPE = 1 # Objective type
m.options.NODES = 3 # Collocation nodes
m.options.SOLVER = 3 # 1=APOPT, 3=IPOPT
# -------------------------------------
# Initialize model and data storage
# -------------------------------------
# Get Version
print(a.version)
# Turn LED on
print('LED On')
a.LED(100)
# Run time in minutes
run_time = 10.0
# Number of cycles with 3 second intervals
loops = int(20.0*run_time)
tm = np.zeros(loops)
# Temperature (K)
T1 = np.ones(loops) * a.T1 # temperature (degC)
T1sp = np.ones(loops) * 35.0 # set point (degC)
T2 = np.ones(loops) * a.T2 # temperature (degC)
T2sp = np.ones(loops) * 23.0 # set point (degC)
# Set point changes
T1sp[3:] = 40.0
T2sp[40:] = 30.0
T1sp[80:] = 32.0
T2sp[120:] = 35.0
T1sp[160:] = 45.0
# heater values
Q1s = np.ones(loops) * 0.0
Q2s = np.ones(loops) * 0.0
# Create plot
plt.figure()
plt.ion()
plt.show()
# Main Loop
start_time = time.time()
prev_time = start_time
try:
for i in range(1,loops):
# Sleep time
sleep_max = 3.0
sleep = sleep_max - (time.time() - prev_time)
if sleep>=0.01:
time.sleep(sleep)
else:
time.sleep(0.01)
# Record time and change in time
t = time.time()
dt = t - prev_time
prev_time = t
tm[i] = t - start_time
# Read temperatures in Kelvin
T1[i] = a.T1
T2[i] = a.T2
###############################
### MPC CONTROLLER ###
###############################
TC1.MEAS = T1[i]
TC2.MEAS = T2[i]
# input setpoint with deadband +/- DT
DT = 0.1
TC1.SPHI = T1sp[i] + DT
TC1.SPLO = T1sp[i] - DT
TC2.SPHI = T2sp[i] + DT
TC2.SPLO = T2sp[i] - DT
# solve MPC
m.solve(disp=False)
# test for successful solution
if (m.options.APPSTATUS==1):
# retrieve the first Q value
Q1s[i] = Q1.NEWVAL
Q2s[i] = Q2.NEWVAL
else:
# not successful, set heater to zero
Q1s[i] = 0
Q2s[i] = 0
# Write output (0-100)
a.Q1(Q1s[i])
a.Q2(Q2s[i])
# Plot
plt.clf()
ax=plt.subplot(3,1,1)
ax.grid()
plt.plot(tm[0:i],T1[0:i],'ro',MarkerSize=3,label=r'$T_1$')
plt.plot(tm[0:i],T1sp[0:i],'k-',lw=2,label=r'$T_1 SP$')
plt.ylabel('Temperature (degC)')
plt.legend(loc='best')
ax=plt.subplot(3,1,2)
ax.grid()
plt.plot(tm[0:i],T2[0:i],'ro',MarkerSize=3,label=r'$T_2$')
plt.plot(tm[0:i],T2sp[0:i],'g-',lw=2,label=r'$T_2 SP$')
plt.ylabel('Temperature (degC)')
plt.legend(loc='best')
ax=plt.subplot(3,1,3)
ax.grid()
plt.plot(tm[0:i],Q1s[0:i],'r-',lw=3,label=r'$Q_1$')
plt.plot(tm[0:i],Q2s[0:i],'b:',lw=3,label=r'$Q_2$')
plt.ylabel('Heaters')
plt.xlabel('Time (sec)')
plt.legend(loc='best')
plt.draw()
plt.pause(0.05)
# Turn off heaters
a.Q1(0)
a.Q2(0)
print('Shutting down')
# Allow user to end loop with Ctrl-C
except KeyboardInterrupt:
# Disconnect from Arduino
a.Q1(0)
a.Q2(0)
print('Shutting down')
a.close()
# Make sure serial connection still closes when there's an error
except:
# Disconnect from Arduino
a.Q1(0)
a.Q2(0)
print('Error: Shutting down')
a.close()
raise
See also:
